■ 信濃行星減速步進電機42MM系列選型參數表
|
型號 |
保持扭矩 |
轉子慣量 |
額定電流 |
驅動電壓 |
卷線電阻 |
卷線電感 |
基本步進角 |
減速比 |
質量 |
|
MODEL NO. |
HOLDING TORQUE |
ROTOR INERTIA |
RATED CURRENT |
DRIVE VOLTAGE |
WINDING RESISTANCE |
WINDING INDUCTANCE |
SETPPING ANGLE |
GEAR RATIO |
MASS |
|
|
(N·m) |
(g·cm2) |
(A/相) |
(V) |
(Ω/相) |
(mH/相) |
|
|
(Kg) |
|
M042C010G短款 |
2.7 |
33 |
1.41 |
24 |
2.1 |
3.3 |
0.18° |
01:10 |
0.38 |
|
M042C010G長款 |
3.5 |
89 |
1.5 |
24 |
2.3 |
1.7 |
0.18° |
01:10 |
0.6 |
|
M042C020G短款 |
4 |
33 |
1.41 |
24 |
2.1 |
3.3 |
0.09° |
01:20 |
0.48 |
|
M042C020G長款 |
6 |
89 |
1.5 |
24 |
2.3 |
1.7 |
0.09° |
01:20 |
0.78 |
■ 信濃行星減速步進電機42MM系列尺寸圖

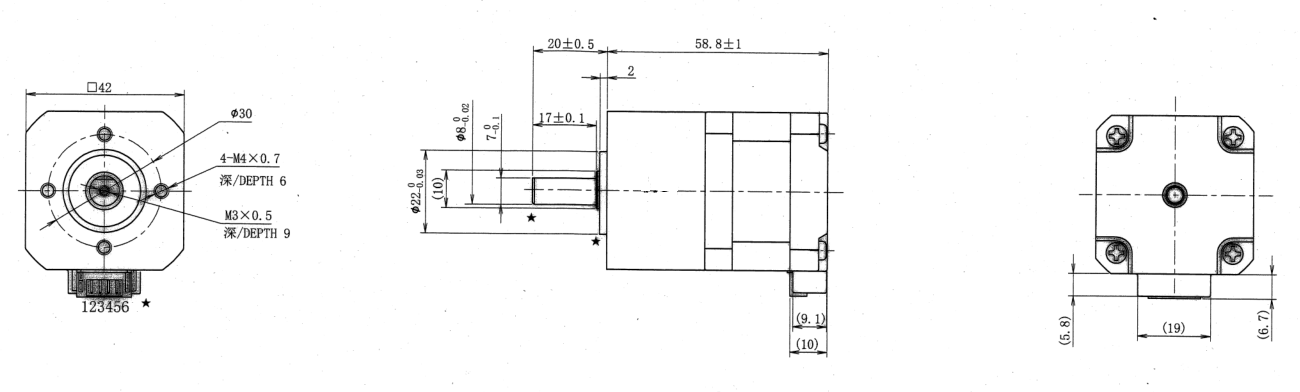

M042C010G短款尺寸圖：

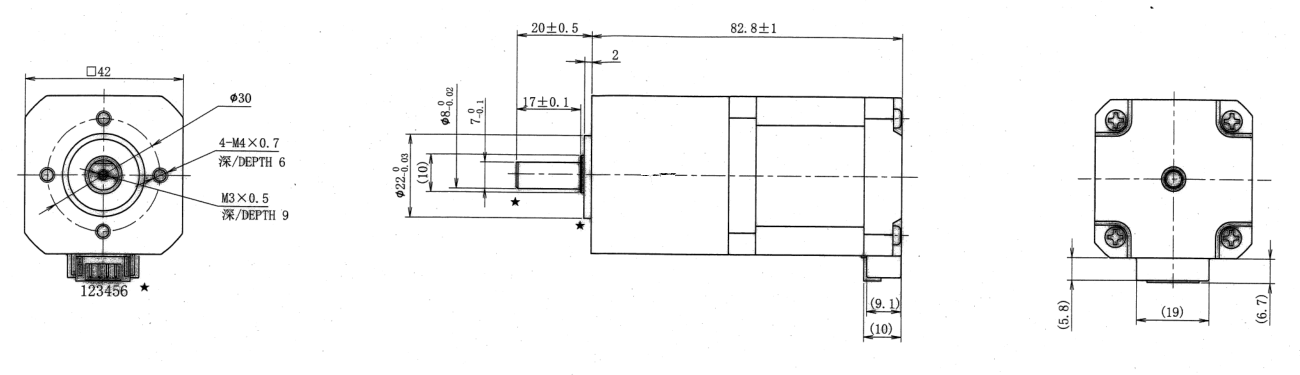

M042C010G長款尺寸圖：

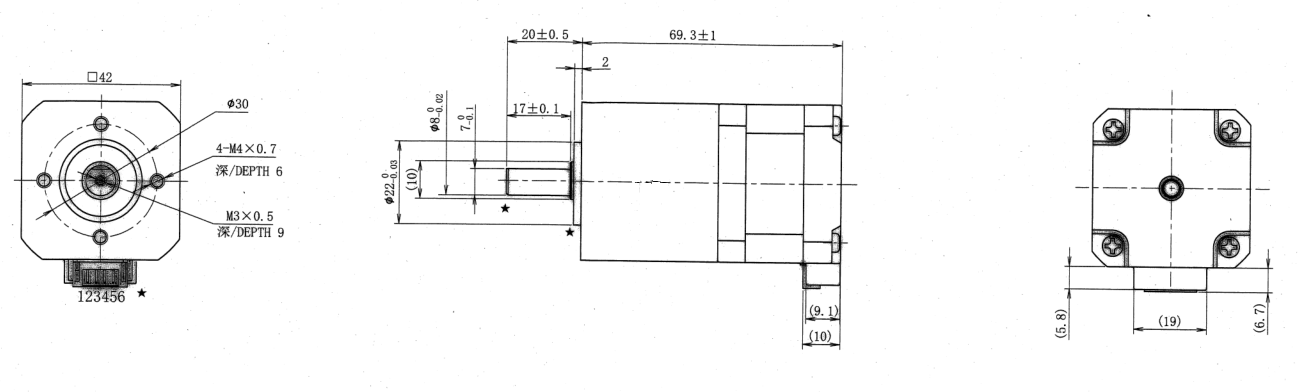

M042C020G短款尺寸圖

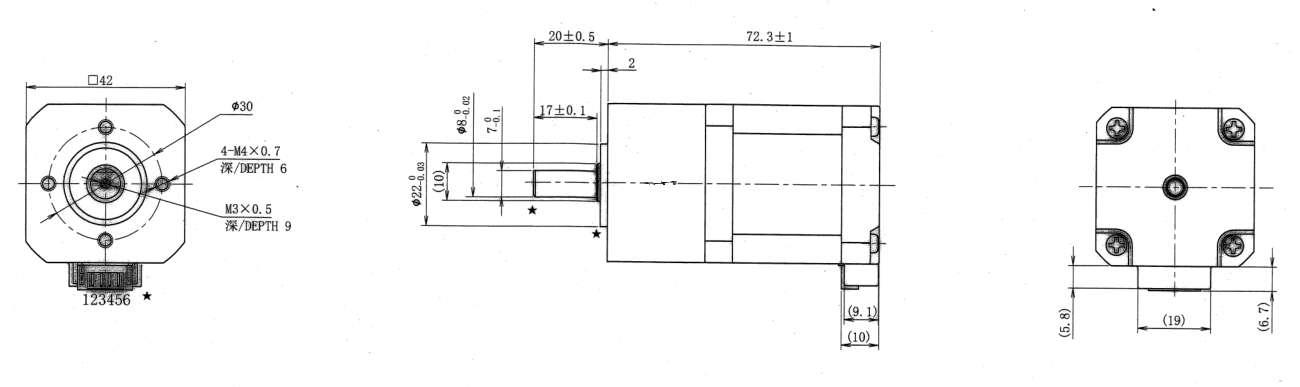

M042C020G長款尺寸圖
■ 信濃行星減速步進電機42MM搭配驅動器推薦
|
型號 |
驅動器推薦 |
|
M042C010G短款 |
MD-2522 |
|
M042C010G長款 |
|
|
M042C020G短款 |
|
|
M042C020G長款 |
■ 信濃行星減速步進電機42MM系列接線圖示意
